.. is a four-person airplane, not just an airplane with four seats. It will carry four FAA standard people, full fuel and sixty pounds of baggage. The cabin accommodates four full-sized adults. Both front and back seats will hold people 6’4" tall and provide them with truly comfortable leg and headroom. Composite gull-wing doors let occupants board from both sides.

The RV-10 is designed to fly well on various versions of the bulletproof six-cylinder Lycoming O-540 engine, developing between 235 and 260 hp. In our prototype, power is provided by a fuel injected 260 hp Lycoming IO-540.
The RV-10..

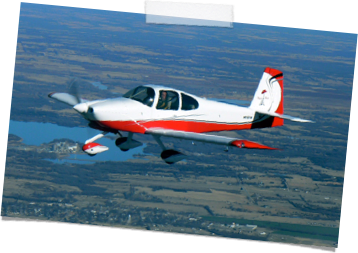

RV-10 HB-YNN

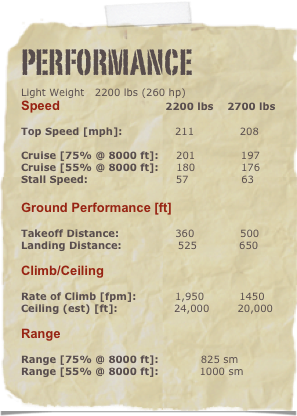

Performance
Light Weight   2200 lbs (260 hp)
Speed                              2200 lbs    2700 lbs

Top Speed [mph]:               211             208

Cruise [75% @ 8000 ft]:     201             197
Cruise [55% @ 8000 ft]:     180             176
Stall Speed:                         57               63

Ground Performance [ft]

Takeoff Distance:                360             500
Landing Distance:                525            650

Climb/Ceiling

Rate of Climb [fpm]:           1,950          1450
Ceiling (est) [ft]:                24,000        20,000

Range

Range [75% @ 8000 ft]:            825 sm
Range [55% @ 8000 ft]:            1000 sm

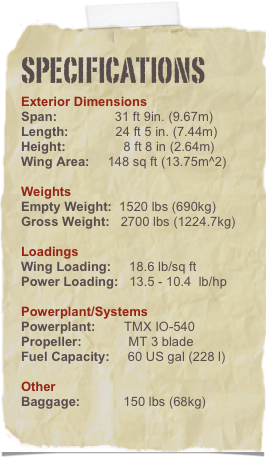

Specifications
Exterior Dimensions
Span:                31 ft 9in. (9.67m)
Length:             24 ft 5 in. (7.44m)
Height:                8 ft 8 in (2.64m)
Wing Area:     148 sq ft (13.75m^2)

Weights
Empty Weight:  1520 lbs (690kg)
Gross Weight:   2700 lbs (1224.7kg)

Loadings
Wing Loading:     18.6 lb/sq ft
Power Loading:   13.5 - 10.4  lb/hp

Powerplant/Systems
Powerplant:        TMX IO-540
Propeller:             MT 3 blade
Fuel Capacity:     60 US gal (228 l)

Other
Baggage:            150 lbs (68kg)
Vansaircraft   RV-10
